Custom Power Bank Packaging

Power bank packaging is a paper-based retail and DTC system that protects lithium-battery devices, carries mandatory labels, and delivers a consistent brand experience. At POZI, it spans folding cartons, rigid gift boxes, and FBA-grade corrugated mailers with modular inserts for 5,000–20,000 mAh SKUs and bundles.

How this applies to your product and channels

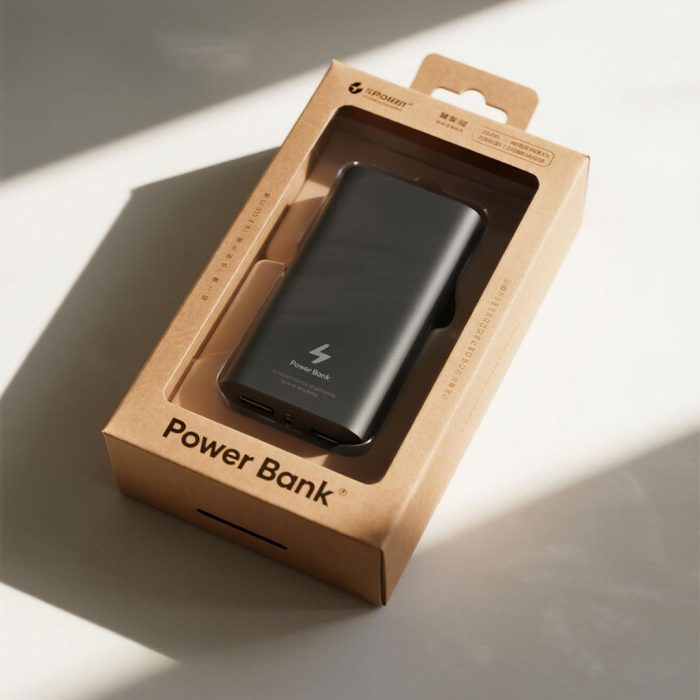

• Retail shelves: Peg-ready straight/reverse tuck or windowed cartons; optional hang tab; barcode grade targets and ΔE color tolerance for consistent scanability.

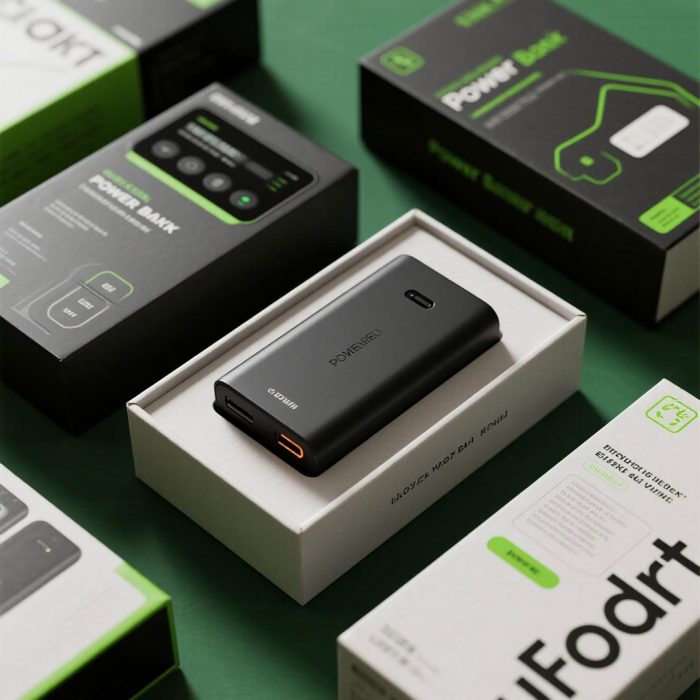

• Premium gifting: Drawer, book-style magnetic, or two-piece rigid boxes; room for cables/leaflets; soft-touch + anti-scuff finishes to protect dark palettes.
• E-commerce / DTC (FBA/3PL): E/B/C/BC-flute mailers engineered for drop and compression; label zones reserved for FBA and lithium-battery marks.
• Kits & twin-packs: Standardized dielines across capacities; modular trays for adapters and cables to cut BOM complexity.
• Compliance layout: UN38.3 battery mark, lithium-battery handling label, CE/FCC/RoHS icons; iconography grid to avoid folds and seams.
• Sustainability: FSC stocks, mono-material paper trays, and plastic-free windows; curbside-friendly designs where regulations allow.

Primary need	Recommended format	Typical outcome
Shelf impact & speed	Folding carton (tuck/auto-lock, window optional)	Faster line changeovers; clean scan rates
Premium unboxing	Rigid box (drawer / book-style / lid-and-base)	Higher perceived value; accessory organization
Parcel durability	Corrugated mailer (E/BC flute)	Lower damage/return rate; label compliance

How do you choose the right packaging structure for power banks?

Match the box type to channel, unit weight, and unboxing goals. Use folding cartons for retail velocity, rigid gift boxes for premium value, and corrugated mailers (FBA/SIOC) for parcel durability—standardized dielines across 5k/10k/20k mAh SKUs keep branding consistent and costs predictable.

Structures mapped to power bank use cases

• Retail Folding Cartons (speed & cost efficiency): Straight/reverse tuck, auto-lock bottom, optional window and hang tab; ideal for shelf/peg display with fast forming and clean barcode read rates.
• Premium Rigid Gift Boxes (unboxing & gifting): Drawer, book-style magnetic, or two-piece lid-and-base; space for cables/leaflets; supports soft-touch, foil, and emboss for high perceived value.
• Corrugated Mailers (FBA/3PL, SIOC-ready): E/B/C/BC flutes tuned for drop/compression; tear-strip and dust flaps; reserve label zones for FBA and lithium-battery marks.
• Hybrid & Kitting (dual-channel): Retail carton nested inside a die-cut mailer, or standardized kit boxes with modular trays to simplify BOM across capacities.

Selection criteria

• Channel: Retail shelf impact vs DTC/SIOC performance.
• Unit mass & accessories: Base strength, tray geometry, port clearance.
• Brand intent & budget: Premium finishes vs velocity and unit cost.
• Sustainability: Mono-material paper tray, FSC stocks, plastic-free windows.
• Lead time: Folding (faster), rigid (longer), mailer (mid).

Structure	Best for	Protection level	Unit cost	Lead time	Notes
Folding carton	Retail velocity	Low–Medium	Low	Fast	Tuck/auto-lock; window optional
Rigid gift box	Premium unboxing	Medium–High	Medium–High	Medium	Drawer/book-style/lid-and-base
Corrugated mailer	DTC/FBA/SIOC	High	Medium	Medium	E/B/C/BC flute; label zones set
Hybrid (carton + mailer)	Dual-channel kits	High	Medium–High	Medium	Retail look + parcel durability

Starter specs (tunable)

• Folding: 300–400 gsm SBS/C1S; optional window (cellulose film).
• Rigid: 1.5–2.0 mm greyboard + 157–200 gsm wrap; magnetic 2–3 pairs.
• Mailer: E-flute for single unit; BC for multi-pack; anti-scuff coating for dark inks.

How do inserts protect power banks during retail and parcel handling?

Engineered inserts lock the device and accessories in place, control scuff and rattle, and absorb drop and compression energy. We specify mono-material paper trays, corrugated nests, molded pulp, or EVA foam by unit weight, route risk, and unboxing goals to keep return rates low and presentation clean.

Tray types, design controls, and test baselines

• Paperboard die-cut tray (recyclable): Fast to tool, ideal for ≤250–350 g units; add retention tabs and crush ribs to prevent slide.
• Corrugated E/B-flute tray (impact absorption): Higher energy management for heavier SKUs or DTC routes; optional corner bumpers and dust guards.
• Molded pulp (eco & premium look): Tight nesting; multi-cavity layouts for cables/leaflets; good for gift sets and mono-material claims.
• EVA/PE foam (precision fit): Best for rigid gift boxes and scratch-sensitive finishes; velvet lamination available for dark devices.

Design controls that cut damage

• Clearances: 0.5–1.5 mm on long edges; avoid load on ports and buttons.
• Rattle control: Local crush cones or paper shims for SKU tolerances; add finger-pulls for fast pick.
• Anti-scuff: Soft sleeves or soft-touch coatings where devices use matte/dark inks.
• Accessory wells: Keyed cavities for cable/adapter to prevent cross-packing errors.

Test guidance (baseline, tunable per lane)

• Drop: Edge/face/corner from 0.6–0.9 m for small parcels (ISTA-style sequence).
• Compression: Set BCT/ECT targets by mailer grade and stack height; validate with stacked pallets.
• Vibration & climate: Screen for fretting at ports; specify water-based adhesives/coatings rated for high humidity routes.

Insert type	Best for	Protection	Recyclability	Cost	Notes
Paperboard tray	≤350 g / retail	Medium	High	Low	Fast tooling; mono-material
Corrugated tray	DTC/FBA, heavier SKUs	Medium–High	High	Low–Medium	Edge bumpers; E/B-flute
Molded pulp	Gift sets / eco claims	Medium–High	High	Medium	Premium look; tight nest
EVA/PE foam	Premium rigid boxes	High	Low–Medium	Medium–High	Precision fit; velvet option

Assembly & cost levers

• Modular cavities across 5k/10k/20k mAh SKUs reduce tooling count.
• Snap-fit or friction-fit features cut glue points and takt time.
• Knock-down pulp and die-cut trays ship flat to lower inbound freight.

How do you ensure brand color accuracy and retail readability in printing?

We control ink, surface, and data quality end-to-end—CMYK + Pantone with ΔE ≤ 2.0 against signed proofs, finishes tuned for scuff resistance, and barcode verification to ISO/IEC Grade B or better—so your power bank packaging looks consistent and scans clean across retail and DTC.

Print system, finishes, data, and layout rules

• Color management
  • CMYK process + Pantone spots; ΔE ≤ 2.0 vs approved press proof.
  • Substrate-specific profiles for SBS/C1S, wrapped greyboard, and litho-laminated corrugate.
  • Underprints/white plates on dark stocks; density targets and drawdowns for difficult hues.
• Surface finishes (electronics-friendly)
  • Matte / Soft-touch lamination with optional anti-scuff varnish for dark palettes.
  • Gloss lamination for high contrast and stain resistance.
  • Aqueous/UV coatings for fast turn and mailer abrasion.
  • Anti-fingerprint and anti-scratch options for premium SKUs.
• Variable data & security
  • Serial/QR/Datamatrix at specified X-dimensions; workcenter/batch codes supported.
  • Tamper-evident seal positions and tear-strip integration; microtext or covert inks on request.
• Barcode & iconography (retail/FBA)
  • Verification to ISO/IEC with target ≥ Grade B; quiet zones ≥ 2.5 mm, avoid folds/seams/windows.
  • Icon grid for UN38.3 lithium battery mark, CE/FCC/RoHS, and logistics/FBA labels; consistent placement on back/side panels.
• Typography & hierarchy
  • Body ≥ 6 pt (reverse ≥ 7 pt); capacity numerals 18–24 pt for shelf read.
  • High-contrast color pairs; avoid thin reverse hairlines over folds.
• Dieline & prepress controls
  • Bleed ≥ 3 mm; safety margins ≥ 3–5 mm; glue flaps carry no critical info.
  • Large black fields: rich black (e.g., C40 M30 Y30 K100); small text: K100 for crispness.
  • Registration marks and barcodes placed off crease/score lines.

Recommended specs by format

• Folding cartons: 300–400 gsm SBS/C1S; soft-touch + anti-scuff for dark designs; window optional with cellulose film.
• Rigid boxes: 1.5–2.0 mm greyboard + 157–200 gsm art wrap; foil/emboss concentrated on flat zones.
• Litho-lam mailers: E/EB flutes; abrasion-resistant aqueous coat; matte label panels to improve scan success.

What you get

• Press-proof pathway (white mock → color proof → production sign-off).
• Barcode test report and ΔE color summary with shipment.
• Consistent brand system across 5k/10k/20k mAh SKUs and bundles.

What materials and sustainability options are available for power bank packaging?

We build power bank packaging with mono-material paper systems—SBS/C1S folding cartons, wrapped greyboard rigid boxes, and E/B/C/BC-flute mailers—backed by FSC-certified stocks, recyclable designs, plastic-free windows, and water-based inks/adhesives. Material weight is engineered to meet drop/compression goals while reducing fiber use.

Substrates, recyclability, and eco design choices

• SBS/C1S (300–400 gsm) for folding cartons: Clean edges, strong printability; matte/soft-touch or aqueous coats; barcode readability tuned by substrate profile.
• Wrapped greyboard (1.5–2.0 mm) for rigid boxes: Premium unboxing; supports textured papers, foil/emboss; specify anti-scuff for dark palettes.
• Corrugated (E/B/C/BC flutes) for mailers/SIOC: Grade set by unit mass, stack height, and route risk; abrasion-resistant aqueous coats for parcel handling.
• Plastic-free visibility: Cellulose film or die-cut windows to replace PET; maintain curbside recyclability where applicable.
• Mono-material inserts: Die-cut paperboard, corrugated nests, or molded pulp for easier separation at end-of-life; EVA reserved for premium scratch-sensitive sets.
• Inks/adhesives: Water-based systems available; soft-touch + anti-scuff stacks selected with recyclability in mind.
• FSC & recycled content: FSC on request; recycled fiber levels balanced against BCT/ECT and print quality targets.
• Light-weighting & design-for-recycling: Board grade optimization, ribbing, and simplified lamination stacks reduce fiber while meeting drop/compression.
• Clear disposal guidance: Standard recycling marks and material IDs; consistent placement on back/side panels.

Materials & sustainability

Option	Format	Recyclability	When to choose	Notes
SBS/C1S board	Folding cartons	High	Retail velocity & clean print	300–400 gsm typical
Wrapped greyboard	Rigid gift boxes	High (film-free)	Premium unboxing	1.5–2.0 mm core + 157–200 gsm wrap
E-flute mailer	DTC single unit	High	Parcel networks	Add abrasion-resistant coat
BC-flute shipper	Multi-pack/stacking	High	Higher BCT targets	Moisture-tuned adhesives
Cellulose window	Retail reveal	High	Replace PET windows	Or use die-cut reveal
Molded pulp tray	Mono-material tray	High	Eco look & tight nesting	Multi-cavity capable

What you provide (for sustainable spec)

• Target channels (retail vs DTC), unit mass, stack height, drop/compression goals, desired recycled content range, and sustainability claims policy.

How do you handle compliance and labeling for lithium-battery power banks?

We reserve fixed layout zones for mandatory marks and logistics labels—UN38.3 lithium battery mark, handling label, CE/FCC/RoHS icons, WEEE/recycling—and verify barcode and contrast to retail/FBA rules. We implement your legal text and symbols exactly as provided and keep them off folds, seams, and windows.

What we implement and how

• Battery & safety marks: UN38.3 symbol, lithium battery handling label; optional WEEE, recycling codes, and age warnings as required by your market.
• Regulatory icons: CE/FCC/RoHS positioning on back/side panels in a consistent iconography grid; quiet zones protected.
• FBA & logistics: Dedicated matte label panels sized to your carrier codes; peel-clean surfaces for replacements.
• Barcode verification: Target ISO/IEC Grade B or higher; X-dimension, contrast, and quiet zones validated.
• Typography & contrast: Min 6 pt body / 7 pt reverse; avoid placing icons across creases or magnetic closures.
• Scope note: We do not provide legal advice; we implement the compliance artwork and statements you supply.

How do you engineer packaging for e-commerce and 3PL networks?

We build SIOC-capable corrugated mailers and dual-channel kits using ISTA-style drop/compression guidance, flute selection by route risk, and moisture-rated adhesives—so single-unit parcels survive edge/face/corner drops and stacked storage without scuff or crush failures.

Route-risk controls

• Drop: Small-parcel sequences at 0.6–0.9 m; edge/face/corner coverage.
• Compression: BCT/ECT targets set by flute (E/B/C/BC) and stack height; pallet pattern recommendations included.
• Moisture & abrasion: Water-based coatings and adhesives specified for humid routes; anti-scuff outer coats for dark art.
• Labels & scans: Matte label fields avoid varnish glare; barcode zones off the crease lines.
• Dual-channel kits: Retail carton nested into die-cut mailer; tear-strip and dust-flap options for easy-open and clean returns.

Scenario	Flute	Outer coat	Sealing	Notes
Domestic courier	E / EB	Aqueous abrasion-resistant	Tear-strip + dust flaps	Single unit, light weight
Cross-border air	B	Aqueous + anti-scuff	Tear-strip	Higher drop energy
Sea + warehouse stack	BC	Moisture-tuned adhesive	Tape + strap (shipper)	Higher BCT and stack time
FBA inbound	E / B	Matte label panel	Tear-strip	Label compliance priority

What are the key technical specs for power bank packaging?

We define tolerances, board grades, barcode and color targets, and mailer strength so print consistency and parcel survival are measurable and repeatable.

Technical spec table

Category	Spec (typical)
Dimensions tolerance	Folding ±1.5 mm; rigid ±1.0 mm; mailer die-cut ±1.5 mm
Folding board	SBS/C1S 300–400 gsm
Rigid core	Greyboard 1.5–2.0 mm + 157–200 gsm wrap
Corrugated	E (≈1.5–2.0 mm), B (≈3.0 mm), C (≈4.0 mm), BC (≈5–7 mm)
Barcode	ISO/IEC target ≥ Grade B; X-dimension ≥ 0.33 mm; quiet zone ≥ 2.5 mm
Color	CMYK + Pantone; ΔE ≤ 2.0 vs signed proof
Typography	Body ≥ 6 pt; reverse ≥ 7 pt; capacity numerals 18–24 pt
Windows	Die-cut or cellulose film (plastic-free option)
Insert fit	Clearance 0.5–1.5 mm long edges; no load on ports
Drop guidance	Parcel edge/face/corner 0.6–0.9 m (ISTA-style)
Compression	BCT/ECT set by flute/stack; BC flute for multi-packs
Label panels	Matte non-varnish zones reserved for FBA/logistics
Finish	Soft-touch + anti-scuff for dark palettes (retail)

What are the MOQs and lead times?

Typical MOQs start at 1,000–3,000 units for folding cartons; rigid boxes and complex kits may be higher. Sampling is 3–7 days (white/color proof) and production runs 10–18 days, depending on structure and finish.

How we schedule

• Sampling: White mock (3–5 days) → color proof (5–7 days) → pilot run if required.
• Production: 10–18 days from proof sign-off (longer for speciality papers/foils).
• Trade terms: FOB/CIF/DDP available; mixed-SKU loading supported.
• Packaging of packs: Export cartons with corner/edge protection and pallet map provided.

How do you manage QC and color consistency?

We apply a gated QC flow with AQL sampling, barcode verification, and ΔE color checks—so every run matches the signed proof and scans clean at retail and FBA.

Process controls

• IQC: Board grade, flute, wrap quality, inks/adhesives verification.
• IPQC: Die-cut registration, glue-tab strength, window/liner adhesion, tray fit go/no-go gauges.
• FQC/OQC: AQL sampling; barcode verification report; ΔE summary; drop/compression spot checks for mailers.
• Traceability: Work-order IDs and batch codes printed in non-consumer zones.
• Change control: Any substrate/finish swap triggers re-proof and sign-off.

Why choose POZI for power bank packaging?

Electronics-ready print control, standardized dielines across capacities, and FBA-capable mailers—delivered with FSC options and repeatable QC—make POZI a reliable partner from retail shelves to DTC.

Differentiators that reduce your risk and time-to-market

• Standardized brand systems: Dielines and tray modules shared across 5k/10k/20k mAh SKUs.
• Electronics expertise: Variable data, barcode grade targets, iconography grids, and anti-scuff stacks that work.
• E-commerce durability: SIOC-minded mailers with route-risk tuning and moisture-rated adhesives.
• Sustainability options: FSC substrates, mono-material trays, cellulose windows, water-based inks.
• Stable delivery: Integrated prepress → print → lamination → die-cut → wrap → QC → ship.
• Multi-language & OEM/ODM: Artwork in EN/ES/FR/AR/RU, private label, and accessory kitting.

FAQ — quick answers for buyers

Here are concise, procurement-ready answers to the most common questions.

• What size data do you need to start?
  Device L×W×H, weight, accessories list, channel (retail/DTC), target markets, and desired finishes.
• Can you meet retail and FBA requirements simultaneously?
  Yes—use a retail carton nested in a die-cut mailer; we reserve label zones and tune drop/compression.
• Are your boxes recyclable?
  Yes—specify mono-material trays and cellulose or die-cut windows; confirm local rules for claims.
• How do you control color?
  Signed press proof, ΔE ≤ 2.0 checks, and substrate profiles per format (folding/rigid/litho-lam).
• What barcode grade do you guarantee?
  We target ISO/IEC Grade B or better when artwork, size, and contrast specs are met.
• Do you supply foam inserts?
  Yes—EVA/PE for premium sets; molded pulp or corrugated trays available for mono-material goals.
• What’s the fastest sampling option?
  White mock in 3–5 days; color proof in 5–7 days; ship by air on request.
• Can you support seasonal bundles or twin-packs?
  Yes—modular trays and standardized dielines simplify BOM and speed relaunches.

What should you send to get a quote or sample?

Share device dimensions and weight, accessories, target channel, quantity tiers, finishes, and compliance artwork—we’ll return dielines, a cost ladder, and a sampling plan within 24 hours.

Request your packaging plan

• Send: L×W×H, weight, capacity (mAh), accessories (cable/adapter/leaflet), retail vs DTC, markets, artwork, and sustainability goals.
• Receive: Dielines, structure recommendation, pricing tiers, sampling/lead-time schedule, and compliance layout.
